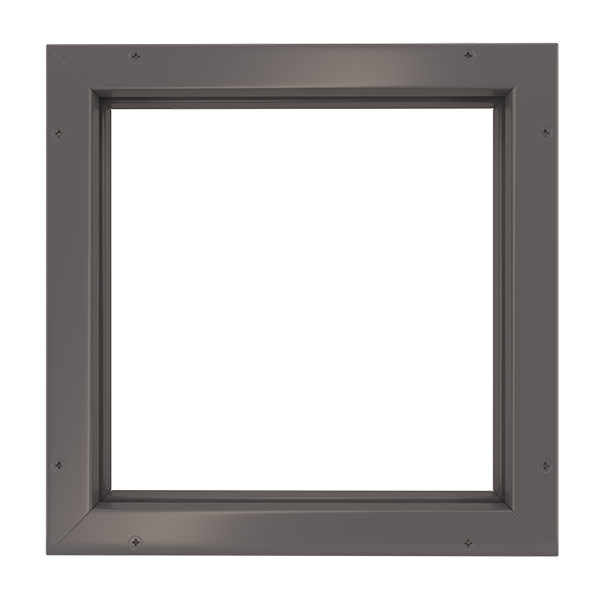

Air Louvers VLFIGLL Square Profile Through Bolted Metal Vision Lite for 3/16″ to 1-11/16″ Glazing w/ Lead Sheeting for Radiation Resistance
Air Louvers VLFIG ThruBolt™ Lead Lined Vision Lites are non-fire-rated commercial door vision frames designed for radiation shielding applications, supporting 1″ to 3″ door thicknesses and 5/16″ to 1-11/16″ glazing with integrated lead lining.
- Supports 1″ – 3″ door thickness
- Accepts 5/16″ – 1-11/16″ glazing thickness
- 18 gauge cold rolled steel construction
- Integrated lead lining for radiation shielding
- Non-fire-rated configuration
Product ID: AIR-VLFIGLL
FREE delivery to most businesses and jobsites on qualifying orders.
HOW TO ORDER
- Get a written quote from a USA Fire Door Solutions Specialist
- Approve & we ship your order
- Click the button below or call us to get started. You can upload plans, photos or files if you have them.
Product Details
Air Louvers VLFIG ThruBolt™ Lead Lined Vision Lites are designed for commercial door applications requiring radiation shielding such as healthcare, laboratory, and imaging environments. Built on the VLFIG ThruBolt™ platform, these vision lites support thicker glazing and non-standard door constructions while incorporating lead sheet lining within the frame. The thru-bolt design provides secure installation while maintaining maximum visible glazing area. Lead lining thicknesses and leaded glazing options allow coordination with required shielding levels for specialized facility requirements.
Specifications
Application: 1″” – 3″” door thickness
Glazing thickness: 5/16″” – 1-11/16″”
Frame material: 18 gauge cold rolled steel
Configuration: Lead lined vision lite
Fire rating: Non-fire-rated
Minimum size: 4″” × 4″”
Maximum size: 60″” × 104″”
Construction: 1-1/4″” trim with mitered and welded corners
Mounting: Countersunk thru-bolt mounting holes both sides
Door cutout: Order size (W × H)
Glazing size: Order size minus 1/4″”
Exposed glazing: Order size minus 1″”
Lead lining: 1/16″” standard lead sheet applied to frame interior
Optional lead thickness: 5/64″”, 3/32″”, custom thickness available
Standard finish: Mineral bronze powder coat
Optional finishes: Black, flat black, white, SC beige, silver, brass, sand, gray, AMS beige
Optional materials: 304 stainless steel, galvanneal steel, zinc plated steel
Fasteners: #8-32 flathead Phillips thru-bolts
Optional fasteners: Torx screws
Compatible glazing: Leaded glass and specialty radiation shielding glazing
Notes: Lead rating of glazing and frame should match door shielding requirements
