Metal Vision Lites

Metal vision lites are a 2 piece window framing system for commercial doors. Metal vision lites are known for their ease of installation, durability, resistance to fire and customizable design features to meet a wide range of safety and security requirements.

Metal Vision Lite Types

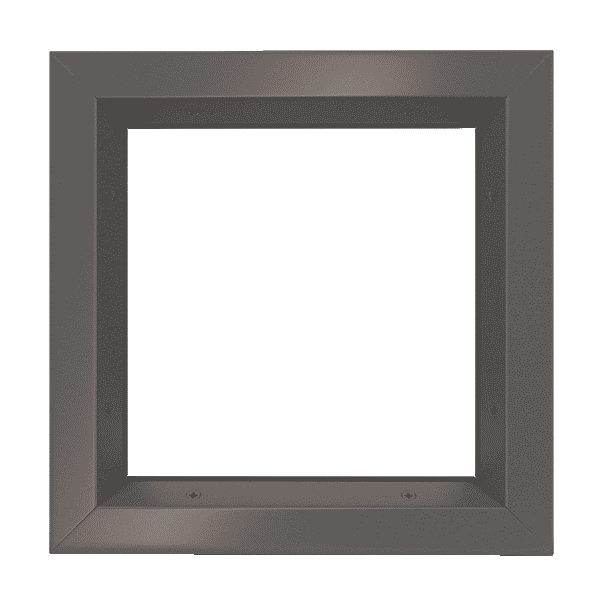

Slim Vision Lite - Metal Window Frame for Doors
Steel Door

SL - Metal Vision Lite

Low-projection metal window frame for commercial doors

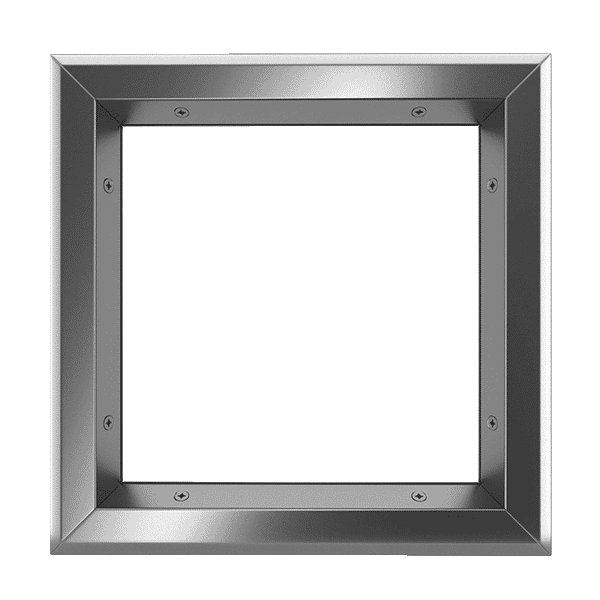

Slim Vision Lite - Stainless Steel Window Frame for Doors
7

SLS - Stainless Door Lite

Low-projection stainless-steel window frame for commercial doors

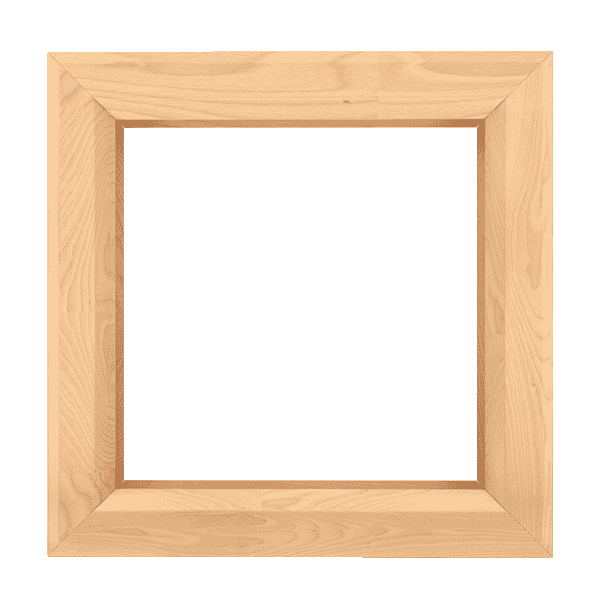

Slim Vision Lite - Wood Over Metal Window Frame for Doors
7

SLW - Wood Veneer Lite

Wood veneer over metal window frame for commercial doors

Slim Vision Lite - Metal Window Frame for Doors
7

SIG - IGU Vision Lite

Factory-sized vision lite for variable door and glass thicknesses

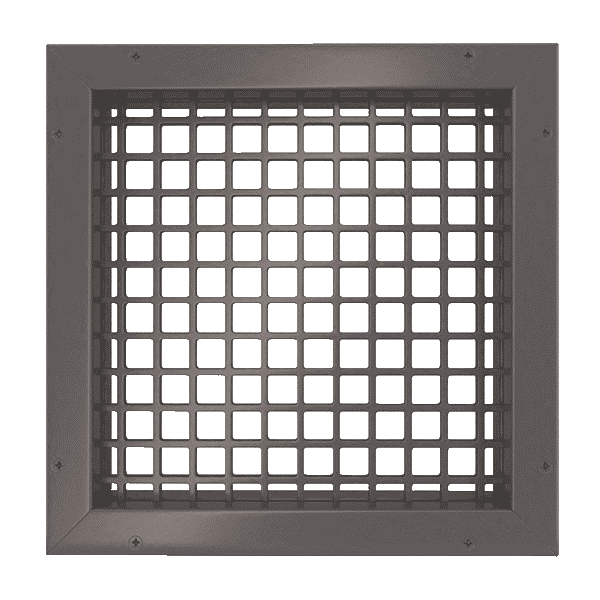

Vision Lite with Security Grill - Metal Window Frame for Doors
Steel Door

SG - Security Window

Metal vision lite with 12 gauge security grill on both sides

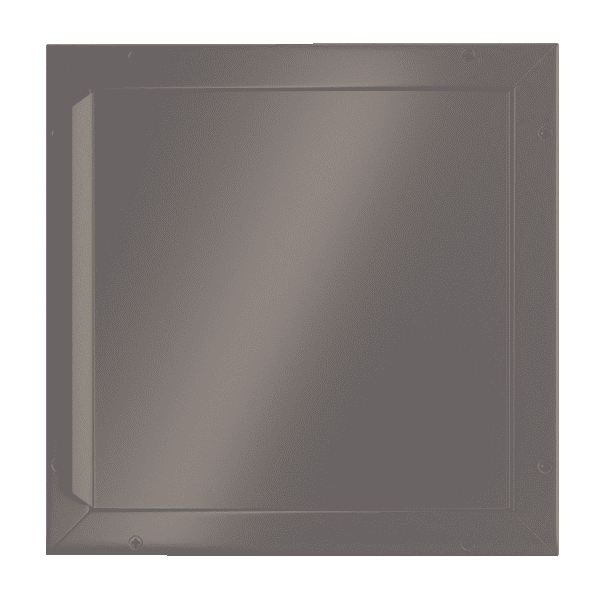

Vision Lite with Privacy Door - Metal Window Frame for Doors
7

PVCY - Privacy Door Lite

Commercial door window frame with operable privacy door

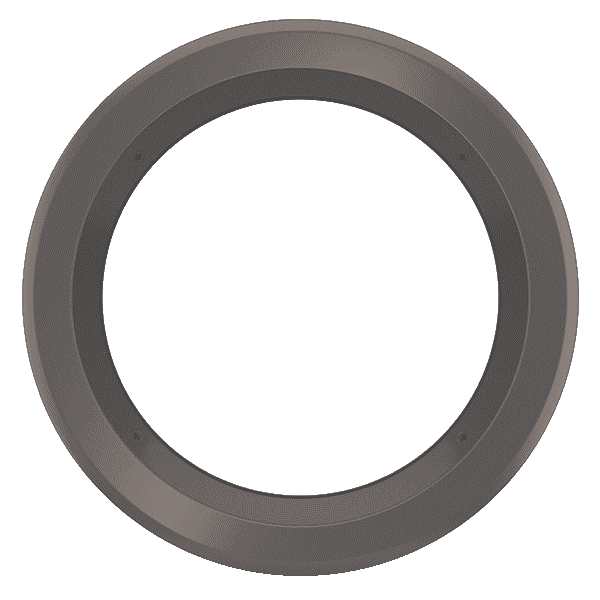

Round Vision Lite - Circle Window Frame for Doors
7

LSR - Round Vision Lite

Circular vision lite window frame for commercial doors

Metal vision lites are a 2 piece window framing system for commercial doors. Metal vision lites are known for their ease of installation, durability, resistance to fire and customizable design features to meet a wide range of safety and security requirements.

Recommended Use of Vision Lite Window Frames

Glass Sold Separately

References & Options

Impact Safety Glazing

CPSC 16CFR 1201 (CAT I & II) | ANSI Z97.1

Fire-Protective Glazing

ASTM E2074 | ASTM E-2010-01 | NFPA 80 | NFPA 252 | NFPA 257 | ULC CAN4-S104 | ULC CAN4-S106

Products classified by Underwriters Laboratories have been tested for fire-and impact resistance only.

UL9 Standard for Fire Tests of Window Assemblies

ANSI/UL10B Standard for Fire Tests of Door Assemblies

ANSI/UL10C Positive Pressure Fire Tests of Door Assemblies

Fire protective glazing materials are not a barrier to radiant or conducted heat. Fire protective products do not meet the heat resistance requirements of ASTM E119/UL 263. Use in fire-rated openings is limited to approved sizes. Use in architectural window openings with fire ratings of 60 minutes or greater may require approval from local building authorities.

20 Minute Fire-Protective Glass: When used within size limitations, 20 minute fire protective glass is approved for use in commercial window and door assemblies. Fire-protective glass is not a barrier to radiant heat.

45 Minute Fire-Protective Glass: When used within size limitations, 45 minute fire protective glass is approved for use in commercial window and door assemblies. Fire-protective glass is not a barrier to radiant heat.

60 Minute Fire-Protective Glass: When used within size limitations, 60 minute fire protective glass is approved for use in commercial window and door assemblies. Fire-protective glass is not a barrier to radiant heat.

90 Minute Fire-Protective Glass: When used within size limitations, 90 minute fire protective glass is approved for use in commercial window and door assemblies. Fire-protective glass is not a barrier to radiant heat.

3 Hour / 180 Minute Fire-Protective Glass: When used within size limitations, 180 minute, or 3-hour fire protective glass is approved for use in commercial window and door assemblies. Fire-protective glass is not a barrier to radiant heat.

Human-Impact Safety Glass: Human-Impact safety glass is designed for use in commercial buildings where incidental impact may occur.

Safety-Filmed Wire Glass: Safety-filmed wire glass is produced by fusing safety film to the wire-embedded glass. This process strengthens the glass, makes it more resistant to impact, and allows the glass to remain intact when exposed to fire for a specific period of time.

Fire-Protective Glass: Fire-rated glass is required in commercial fire-rated door and window applications. Fire rated glass is resistant to human impact and withstands smoke and flames for a specified period of time.



Commercial Door Windows: Vision lite and glass kits are meant for use in commercial windows and doors.

Impact-Safe Glass Doors: Tempered glass is recommended for use in areas prone to human impact.

Window Frames for Wood Doors: Metal door window kits are frequently used in commercial wood doors.

Door Vision Lite Kits: Add tempered or fire-rated windows to commercial wood and metal doors.

Fire-Rated Door Windows: Door window kits with fire-rated glass are approved for use in fire-rated doors.

Insulated Glass Door Lites: Insulated glass consists of 2 pieces of glass, sealed together with an air space between.
