Interior Aluminum Frames
Aluminum window and door frames are manufactured from clear, bronze or black anodized aluminum extrusions. Extruded aluminum frames are used as interior door frames, side-lites, transoms and “borrowed-lite” windows.
Frame Types
AL Door Frame
Aluminum Door Frame – 3 Sided Interior Aluminum Door Frame
AL Door Frame - DBL
Aluminum Double Door Frame – 3 Sided Interior Aluminum Door Frame for Paired Openings
AL Door Frame - TSM
Aluminum Door & Transom Frame – Interior Aluminum Door Frame w/ Transom Lite

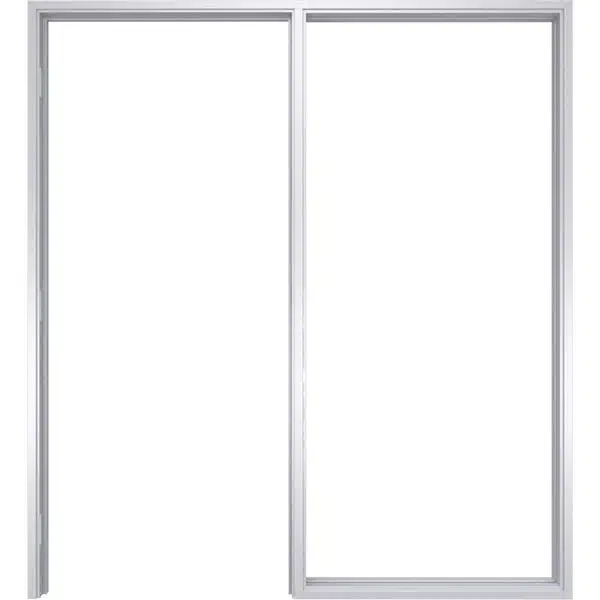

AL Door Frame - SL1
Aluminum Door & Sidelite Frame – Interior Aluminum Door Frame w/ Sidelite
AL Door Frame - SL2
Alum Door & (2) Sidelite Frame – Interior Aluminum Door Frame w/ (2) Sidelites
AL Window Frame - BL
Aluminum “Borrowed” Lite Window – Aluminum Framing for Inoperable Window
Custom Aluminum Door Frames
Order custom aluminum door frames for interior use.
Aluminum window and door frames are manufactured from clear, bronze or black anodized aluminum extrusions. Extruded aluminum frames are used as interior door frames, side-lites, transoms and “borrowed-lite” windows.
Anodized Aluminum Colors
Standard for Most Commercial Doors
Clear
Clear anodized door and window frames are made from non-dyed extruded aluminum.
Standard for Most Commercial Doors
Commercial Dark Bronze
Dark bronze anodized door and window frames are made from extruded and dyed aluminum.
Black
Black anodized frames are made from extruded and dyed aluminum.
Frame & Casing Details
1" Aluminum Casing
Matching 1″ casing/trim clips to frame and covers screws and fasteners.
1-1/2" Aluminum Casing
Matching 1.5″ casing/trim clips to frame and covers screws and fasteners.
2" Aluminum Casing
Matching 2″ casing/trim clips to frame and covers screws and fasteners.
Recommended Use of Interior Aluminum Frames
References & Options
Anodized Aluminum Finish Standards
Class II Clear Anodize AA-M10-C22-A31
Commercial Dark Bronze Anodize AA-M10-C22-A24
Class II Black Anodized AA-M10-C22-A34
Intertek/Warnock Hersey Fire Door Test Methods
Neutral Pressure: CAN/ULC S104 | NFPA 252 | UBC7-2 (1994) | UL 10B
Positive Pressure: NFPA 252 | UBC 7-2 Part 1 (1997) | UL 10C
International Standards: BS 476 | EN 1634-1 | ISO 3008
Non-Fire Rated Openings: Interior aluminum door frames are frequently used in non-fire rated commercial door openings.
20 MIN: 20 minute fire rated doors are used in 1-hour walls where smoke and draft control is a concern.
45 MIN: 45 minute fire rated doors are used in 1-hour corridors, room partition walls, or exterior walls that may be subject to moderate fire.
60 MIN: 60-minute fire rated doors are used in 1-hour walls that divide occupancies in buildings.
90 MIN: 90-minute fire rated doors are required in two-hour walls, stairwells, elevator shafts, boiler rooms and exterior areas with severe fire risk.
Aluminum Interior Door Frames: Aluminum frames are frequently used with wood or aluminum doors.
Fire Rated Doors: Aluminum frames can be configured for use in fire-rated door applications.
Aluminum Side-Lite Frames: Interior aluminum frames can be fabricated as sidelite frames and supplied with pre-cut glass stops.
Transom Frames: Aluminum door frames can be fabricated as transom frames and accept glass above the door opening.
Borrowed-Lite Window Frames: Aluminum borrowed lites are fixed-window frames that can be divided by mullions.
Commercial Door Frames: Aluminum door frames are built for use in commercial door applications.
