Stainless Steel Doors
Architectural stainless-steel doors are made from type 304 or type 316 alloy. Stainless-steel doors are recommended for commercial and industrial door openings where corrosion resistance, anti-bacterial properties or sleek aesthetics are required.
Stainless-Steel Door Types
SS Door - F
Stainless Steel Door – Flush, No Cutouts for Windows or Louvers

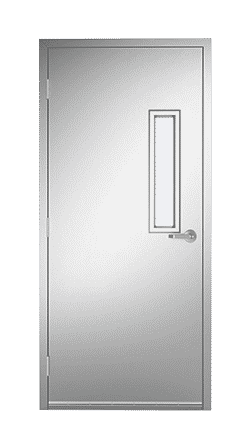

SS Door - N
Stainless Steel Door + N Cutout for Small Rectangular Vision Lite Window Frame
SS Door - V
Stainless Steel Door + V Cutout for Small Square Vision Lite Window Frame

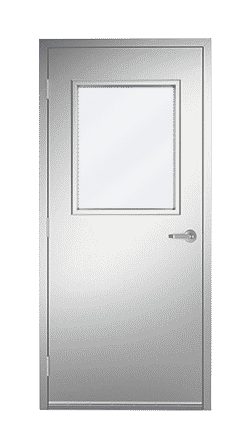

SS Door - HG
Stainless Steel Door + HG Cutout for “Top-Half Glass” Vision Lite Window Frame

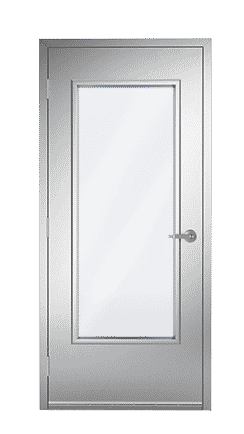

SS Door - FG
Stainless Steel Door + FG Cutout for “Full Glass” Vision Lite Window Frame

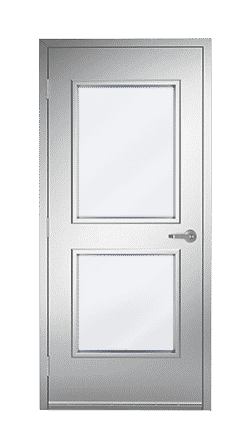

SS Door - GG
Stainless Steel Door + GG Cutout for “Glass Over Glass” Vision Lite Window Frames
SS Door - TG
Stainless Steel Door + TG Cutout for “Tall Glass” Rectangular Vision Lite

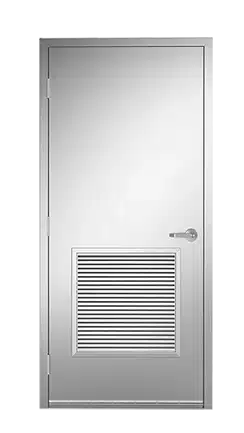

SS Door - LB
Stainless Steel Door + LB Cutout for Vented Louver Insert at Bottom of Door
SS Door - LL
Stainless Steel Door + LL Cutout for Vented Louver Inserts at Top & Bottom of Door
SS Door - LF
Stainless Steel Door + LF Cutout for “Full Height” Vented Louver Insert
SS Door - LT
Stainless Steel Door + LT Cutout for Vented Louver Insert at Top of Door
SS Door - LB2
Stainless Steel Door + LB Cutout for Vented Louver Insert at Bottom of Door
SS Door - NLB
Stainless Steel Door + N & LB Cutout for Louver Below Rectangle Vision Lite

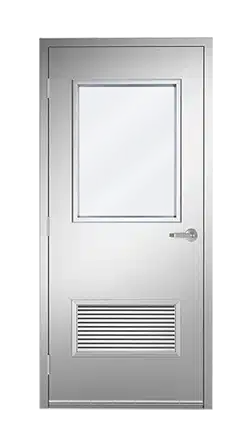

SS Door - HGLB
Stainless Steel Door + HG & LB Cutout for Louver Below Half-Glass Lite

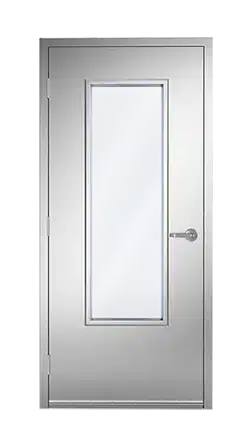

SS Door - FG/S9
Stainless Steel Door + FG Cutout for “Full Glass” Window, Wide Stile

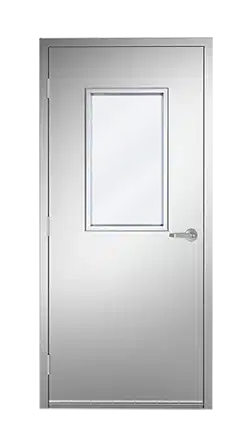

SS Door - HG/S9
Stainless Steel Door + HG Cutout for “Half- Glass” Window, Wide Stile
Architectural stainless-steel doors are made from type 304 or type 316 alloy. Stainless-steel doors are recommended for commercial and industrial door openings where corrosion resistance, anti-bacterial properties or sleek aesthetics are required.
Commercial Steel Door Performance Level
Standard for Most Commercial Doors
Level 2 | 18ga.
18 gauge stainless steel doors are classified as as physical performance level 2 for heavy-duty durability.
Level 3 | 16ga.
16 gauge stainless steel doors are classified as as physical performance level 3 for extra-heavy-duty durability.
Level 4 | 14ga.
14 gauge stainless steel doors are classified as as physical performance level 4 for maximum-duty durability.
Stainless-Steel Alloy
Standard for Most Commercial Doors
Type 304
In addition to iron, 304 stainless-steel contains approximately 8% nickel and about 18% chromium. 304 stainless-steel doors are known for their corrosion resistance and frequent use in food processing, industrial and public facilities.
Type 316
In addition to iron, 316 stainless steel contains approximately 10% nickel, 16% chromium and 2% molybdenum. Compared to 304 alloy, 316 stainless steel doors are more resistant to corrosion from chloride and acidic environments.
Stainless-Steel Finishes
Standard for Most Commercial Doors
#4 | Satin Brushed
#4 satin stainless-steel doors are known for their “brushed” linear appearance. Stainless steel doors with #4 finish are known to resist blemishes, scratches and fingerprints.
#8 | High Gloss Polished
#8 high gloss, polished stainless-steel doors are known for their non-directional, “mirror” like appearance. Stainless steel doors with #8 finish are highly reflective.
#2B | Mill Finish
Stainless-steel doors with #2B mill finish are known for their non-polished, non-brushed surface that may appear inconsistent, distorted and/or partially reflective.
Commercial Steel Door Models
Standard for Most Commercial Doors
Model 1 | Full Flush
Full flush stainless-steel doors are formed with a visible seam at the door edge.
Model 2 | Seamless Edge
Seamless edge stainless-steel doors have filled, finished, and polished vertical edges.
Hollow Metal Door Cores
Standard for Most Commercial Doors
Polystyrene
Polystyrene provides a stainless-steel door with rigidity, resistance to dents and insulating properties.
Standard for Most Commercial Doors
Honeycomb
Resin-hardened honeycomb core stabilizes a commercial steel door and provides resistance to impact and dents.
Steel Stiffened
Steel stiffened doors have steel reinforcements welded inside the door cavity. Insulation is used to fill any air space.
Temperature Rise
Temperature rise doors have a mineral composite core that reduces heat transfer to the non-fire side of a door.
Urethane
Polyurethane foam is expanded inside the cavity of a steel door to improve insulating values.
Specialty Door Cores
STC or acoustical doors are used in studios, theaters and applications where audible noise is a concern.
Lead lined doors resist the transfer of radiation in medical, energy and aerospace facilities.
Ballistic doors are designed for use in areas where a firearm is likely to be discharged.
Blast doors are designed to protect building occupants and property during an explosion.
Recommended Use
References & Options
SDI/ANSI: SDI-100-91/ANSI 250.8-03 | SDI-105-98/ANSI A250.11-01 | SDI-107-84/ANSI A250.6-03
SDI-108-10 Recommended Selection and Usage Guide for Standard Steel Doors
SDI-118-05 Basic Fire Door Requirements
ANSI/SDI A250.13-2008 (R2018) Testing and Rating of Severe Windstorm Resistant Components for Swinging Door Assemblies for Protection of Building Envelopes
Intertek/Warnock Hersey Fire Door Test Methods
Neutral Pressure: CAN/ULC S104 | NFPA 252 | UBC7-2 (1994) | UL 10B
Positive Pressure: NFPA 252 | UBC 7-2 Part 1 (1997) | UL 10C
International Standards: BS 476 | EN 1634-1 | ISO 3008
Non-Fire Rated Openings: Stainless-steel doors are recommended for their aesthetic properties and resistance to moisture, corrosives and bacteria.
20 MIN: 20 minute fire rated doors are used in 1-hour walls where smoke and draft control is a concern.
45 MIN: 45 minute fire rated doors are used in 1-hour corridors, room partition walls, or exterior walls that may be subject to moderate fire.
60 MIN: 60-minute fire rated doors are used in 1-hour walls that divide occupancies in buildings.
90 MIN: 90-minute fire rated doors are required in two-hour walls, stairwells, elevator shafts, boiler rooms and exterior areas with severe fire risk.
3 HR / 180 MIN: 180 minute, or 3-hour, fire rated doors are required in 4-hour walls that separate a large building, or multiple buildings into designated fire areas.
Modern Commercial Interior Doors: Stainless-steel doors are frequently used for interior commercial door applications that require a clean and modern design.
Exterior Doors: Stainless-steel doors are designed for exterior use in commercial buildings where corrosion may be a concern.
Hygenic Doors: Stainless-steel doors are known for their resistance to bacterial growth and hygenic properties. Stainless doors are commonly used in airports, food and drug processing facilities and surgical centers.
Stainless Doors with Windows or Louvers: Architectural stainless-steel doors are available with matching stainless-steel vision lites, window kits or louvers.
Double Stainless Doors: Stainless-steel doors can be hung as single doors or paired in double door assemblies.
Industrial Doors: Stainless-steel doors are built for heavy-duty commercial and industrial door applications.
TDI – Inland Zone 2: Texas Department of Insurance approved hurricane doors are required in exterior door openings within zone two of the designated coastal region.
TDI – Inland Zone 1: Texas Department of Insurance approved hurricane doors are required in exterior door openings within zone one of the designated coastal region.
TDI – Seaward Zone: Texas Department of Insurance approved hurricane doors are required in exterior door openings within the designated seaward intracoastal zone.
Florida Building Code: Florida approved hurricane doors are required in exterior door openings within the state of Florida. (Insufficient for properties in Miami-Dade County)
Miami-Dade County, FL: Miami-Dade approved hurricane doors are required in exterior applications within the county of Miami-Dade, FL.
