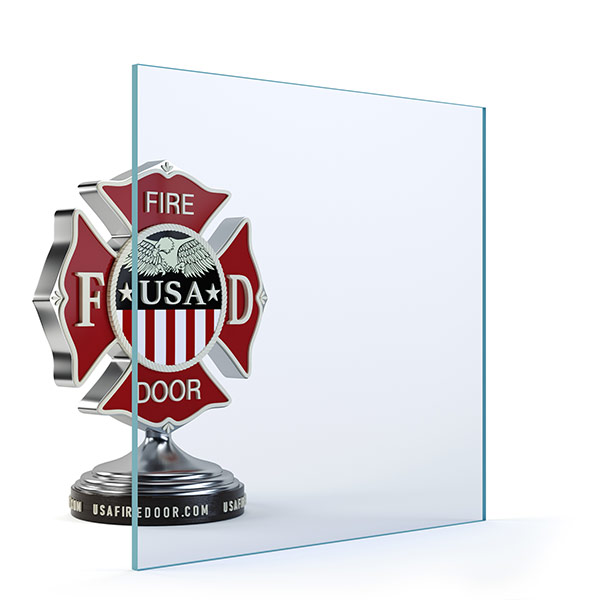

TEMP20® Fire-Rated Safety Glass
TEMP20® is a 1/4″ thick fire-protective tempered safety glass designed for commercial door vision lites, borrowed lites, sidelites, and transoms, providing impact safety compliance and 20-minute fire protection.
- 1/4″ (6mm) tempered safety glass construction
- 20-minute fire rating (no hose stream)
- Impact safety rated (CPSC Category I & II)
- High optical clarity with clear, wireless appearance
- Designed for vision lites, sidelites, transoms, and borrowed lites
Product ID: TEMP20
FREE delivery to most businesses and jobsites on qualifying orders.
Most orders ship within 3-5 business days. Get a quote now.
HOW TO ORDER
- Get a written quote from a USA Fire Door Solutions Specialist
- Approve & we ship your order
- Click the button below or call us to get started. You can upload plans, photos or files if you have them.
Product Details
TEMP20® fire-protective glazing is a heat-treated tempered safety glass designed for commercial hollow metal doors and commercial wood doors requiring 20-minute fire-rated glazing. The glass is cut to size and then tempered to achieve impact safety and strength while maintaining fire protection performance. This fire-protective glass resists flames, smoke, and toxic gases but does not provide a barrier to radiant heat transfer. Suitable for vision lites, borrowed lites, sidelites, and transoms, this glazing is commonly used in commercial, institutional, and industrial openings requiring economical fire-rated glazing solutions.
Specifications
- Material: Tempered fire-protective safety glass
- Thickness: 1/4″ (6mm)
- Weight: Approximately 3 psf
- Visible light transmission: High clarity glass
- STC rating: 28
- Minimum size: Approximately 4-1/2″ (minimum diagonal requirements apply)
- Maximum size: Approximately 35-3/4″ × 88-3/4″
- Fire ratings: 20 minutes (no hose stream)
- Fire classification: Fire-protective glazing
- Listings: ANSI/UL 9, ANSI/UL 10B, ANSI/UL 10C, CAN/ULC S104
- Impact safety: CPSC 16CFR 1201 Category I & II
- ANSI standard: ANSI Z97.1 impact safety compliant
- Applications: Vision lites, borrowed lites, sidelites, and transoms
- Optional configurations: Available in insulated glass units
- Glazing requirements: Compatible glazing tape or closed cell glazing systems
- Marking: Permanent fire and safety label required
- Warranty: Limited manufacturer warranty
- Fire-protective glass resists flames, smoke, and toxic gases
- This product is not a barrier against radiant heat
Lock Prep Options
161 Lock Prep / Deadbolt Prep
Bored – 2-3/4″ Backset (ANSI / SDI A115.2)
86 Edge Prep
Mortise Lock Edge Prep w/ Blank Face (ANSI / SDI A115.1)
RPD – Rim Panic Reinforced
(Blank Edge & Blank Face) Designed for use with panic bar exit devices.
Custom Lock Prep
(Template Required)
Configurations
Single Door
Double Door Active/Inactive
Secondary Door Can Open When Flush Bolts Are Disengaged
Double Exit Door
Both Doors Active w/ SVR Panic
Double Door Push/Pull
Both Doors Active
(Cannot Be Fire Rated)
Communicating Door
For Adjoining Hotel Rooms
Double Egress Door
For Emergency Exit In Either Direction
Double Acting Door
Swings Both Directions (Cannot Be Fire Rated)
Core Construction

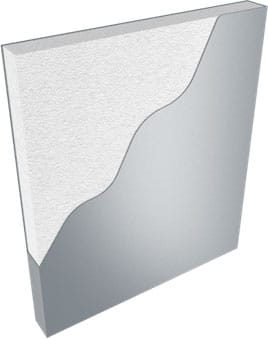

Polystyrene – Provides improved thermal performance and rigidity
Thermal Performance
| U-Factor Range (Calculated) ASTM C518 | 0.13 to 0.16 |
| U-Factor Range (Operable) ASTM C1363 | 0.35 to 0.41 |
| R-Value Range (Calculated) ASTM C518 | 6.40 to 7.61 |
| R-Value Range (Operable) ASTM C1363 | 2.40 to 2.80 |
Disclaimer: Thermal performance data is based on industry standard construction methods and testing. Actual thermal performance may vary based on installation methods. The addition of weatherstrip, vision lites, glass, louvers and hardware products will affect thermal performance. Even though polystyrene offers greater thermal performance compared to other core options this product is not Energy Star qualified.
Standard Sizes
7’0” / 84” Door Heights (1-3/4” Thick)
| Nominal Size | Inches | Actual Size (Net) |
| 2’0” x 6’8” | 24” x 80” | 23-3/4” x 79-1/8” |
| 2’4” x 6’8” | 28” x 80” | 27-3/4” x 79-1/8” |
| 2’6” x 6’8” | 30” x 80” | 29-3/4” x 79-1/8” |
| 2’8” x 80” | 32” x 80” | 31-3/4” x 79-1/8” |
| 2’10” x 6’8” | 34” x 80” | 33-3/4” x 79-1/8” |
| 3’0” x 6’8” | 36” x 80” | 35-3/4” x 79-1/8” |
| 3’4” x 6’8” | 40” x 80” | 39-3/4” x 79-1/8” |
| 3’6” x 6’8” | 42” x 80” | 41-3/4” x 79-1/8” |
| 4’0” x 6’8” | 48” x 80” | 47-3/4” x 79-1/8” |
7’0” / 84” Door Heights (1-3/4” Thick)
| Nominal Size | Inches | Actual Size (Net) |
| 2’0” x 7’0″ | 24” x 84” | 23-3/4” x 83-1/8” |
| 2’4” x 7’0″ | 28” x 84” | 27-3/4” x 83-1/8” |
| 2’6” x 7’0″ | 30” x 84” | 29-3/4” x 83-1/8” |
| 2’8” x 7’0″ | 32” x 84” | 31-3/4” x 83-1/8” |
| 2’10” x 7’0″ | 34” x 84” | 33-3/4” x 83-1/8” |
| 3’0” x 7’0″ | 36” x 84” | 35-3/4” x 83-1/8” |
| 3’4” x 7’0″ | 40” x 84” | 39-3/4” x 83-1/8” |
| 3’6” x 7’0″ | 42” x 84” | 41-3/4” x 83-1/8” |
| 4’0” x 7’0″ | 48” x 84” | 47-3/4” x 83-1/8” |
8’0” / 96” Door Heights (1-3/4” Thick)
| Nominal Size | Inches | Actual Size (Net) |
| 2’0” x 8’0″ | 24” x 96” | 23-3/4” x 95-1/8” |
| 2’4” x 8’0″ | 28” x 96” | 27-3/4” x 95-1/8” |
| 2’6” x 8’0″ | 30” x 96” | 29-3/4” x 95-1/8” |
| 2’8” x 8’0″ | 32” x 96” | 31-3/4” x 95-1/8” |
| 2’10” x 8’0″ | 34” x 96” | 33-3/4” x 95-1/8” |
| 3’0” x 8’0″ | 36” x 96” | 35-3/4” x 95-1/8” |
| 3’4” x 8’0″ | 40” x 96” | 39-3/4” x 95-1/8” |
| 3’6” x 8’0″ | 42” x 96” | 41-3/4” x 95-1/8” |
| 4’0” x 8’0″ | 48” x 96” | 47-3/4” x 95-1/8” |
How to ORDER
Tell us what you need and we'll do the work for you! Most projects are quoted within 24 hours.
01
Step 1
TELL US WHAT YOU NEED
Share any projects details you have. Or just send us a message and we'll have someone reach out to you.
02
Step 2
GET A WRITTEN QUOTE
Your dedicated account manager will send you a quote or contact you with any questions.
03
Step 3
APPROVE & WE SHIP
We'll work with you thoroughout the entire process and carefully track your order until it's received.
Ready to start your commercial door project?
Priority pricing and fast lead times - free delivery to most jobsites and businesses nationwide.
Related Products
Type 304 Stainless Steel Knocked Down or Welded Frame with #4 Brushed Finish for Commercial Door Pairs
Type 304 Stainless Steel Commercial Knocked Down or Welded Commercial Door Frame with #4 Brushed Finish

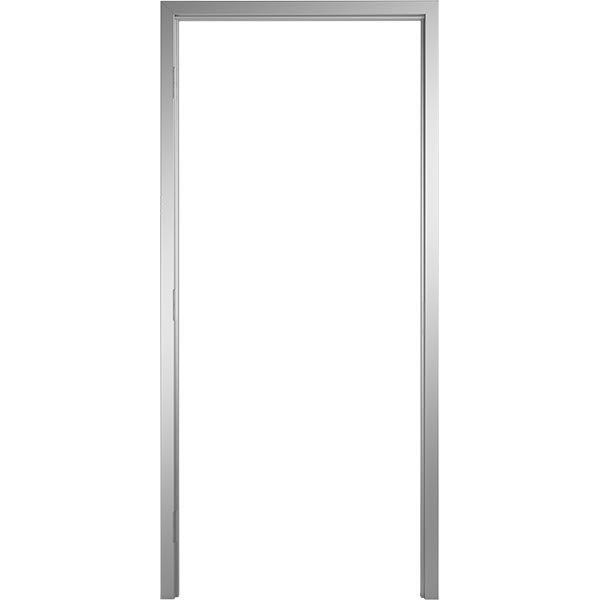

Type 304 Stainless Steel Knocked Down Slip-On Drywall Door Frame with #4 Vertical Grain Brushed Finish for Commercial Doors

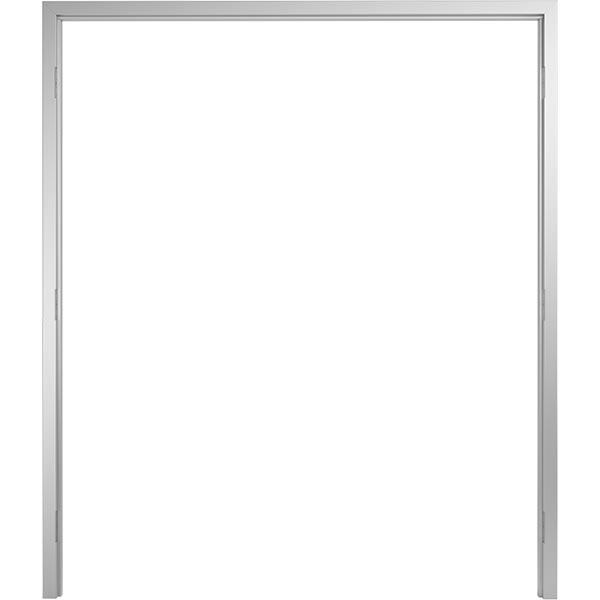

Type 304 Stainless Steel Knocked Down Slip-On Drywall Frame with #4 Brushed Finish for Commercial Door Pairs

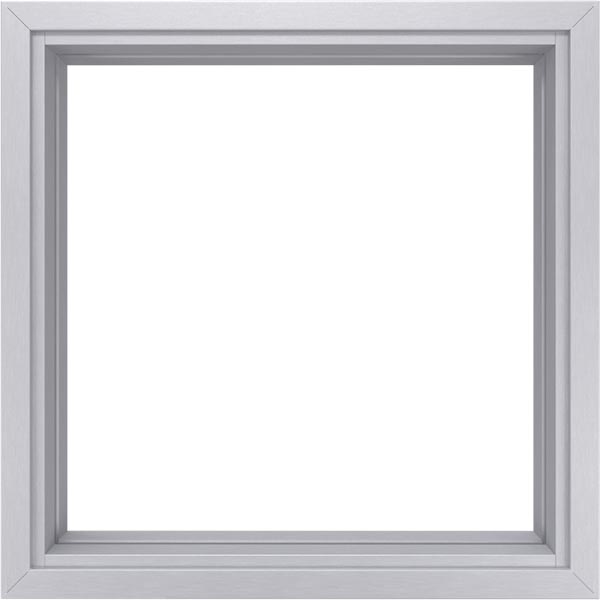

Western Integrated Materials 300 Series Interior Aluminum Borrowed Light Frame

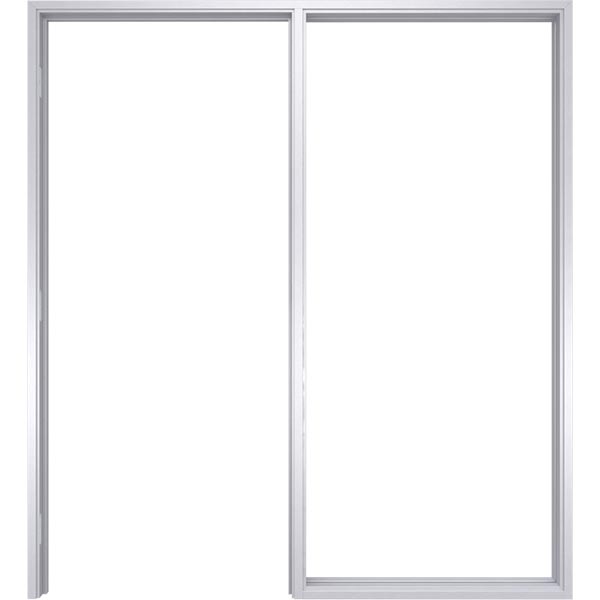

Western Integrated Materials 300 Series Interior Aluminum Sidelight Frame

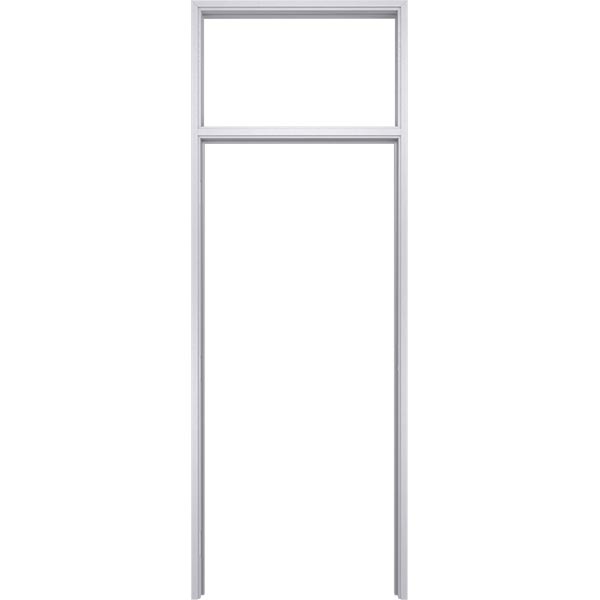

Western Integrated Materials 300 Series Interior Aluminum Transom Frame

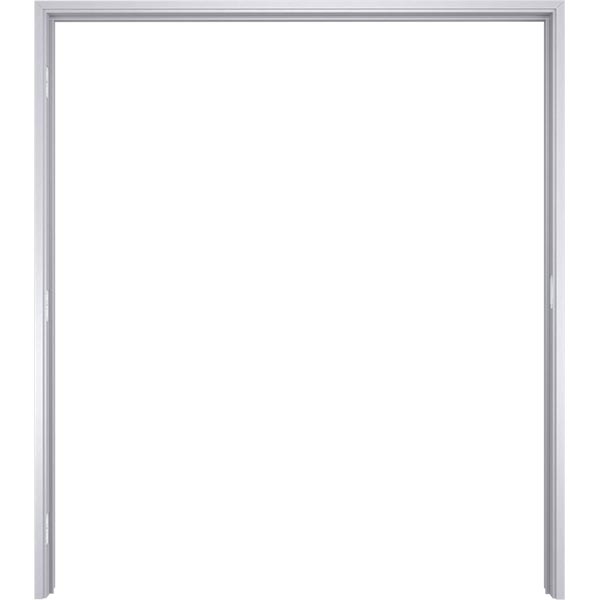

Western Integrated Materials 300 Series Interior Aluminum Double Door Frame (Pairs)

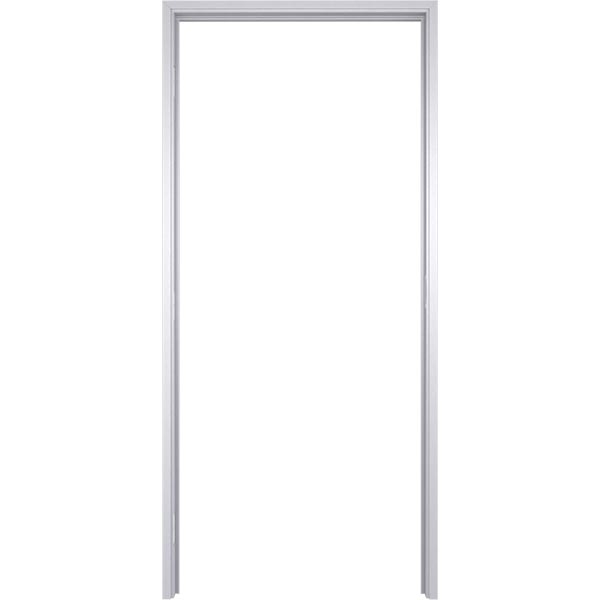

Western Integrated Materials 300 Series Interior Aluminum Door Frame

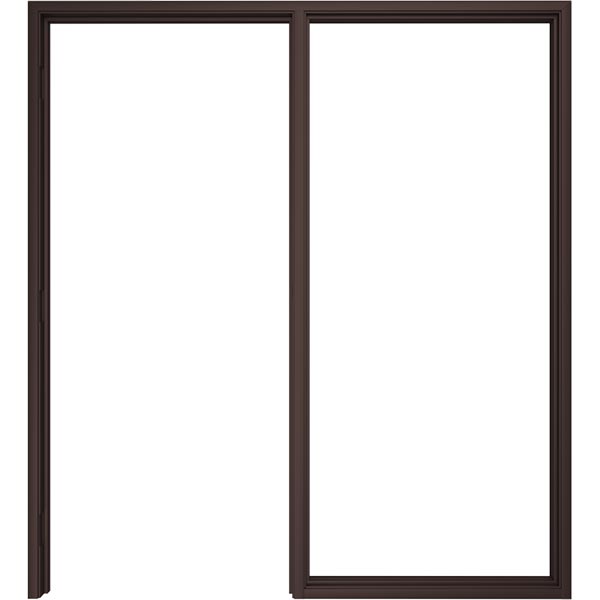

Timely® Classic Prefinished Steel Sidelight Frame

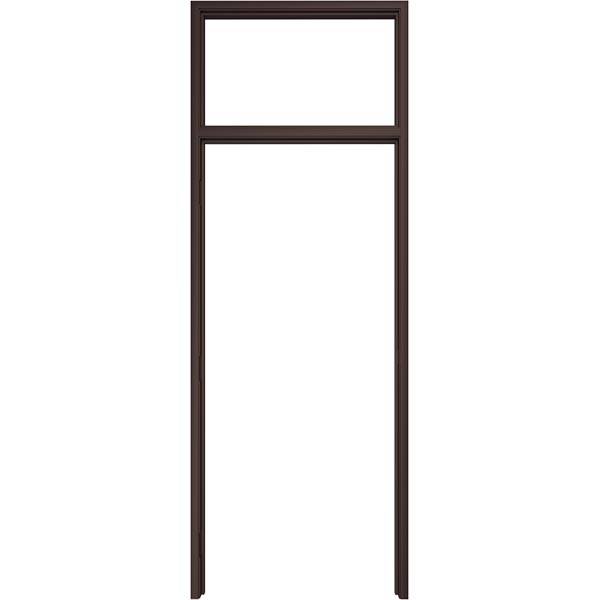

Timely® Classic Prefinished Steel Transom Frame
