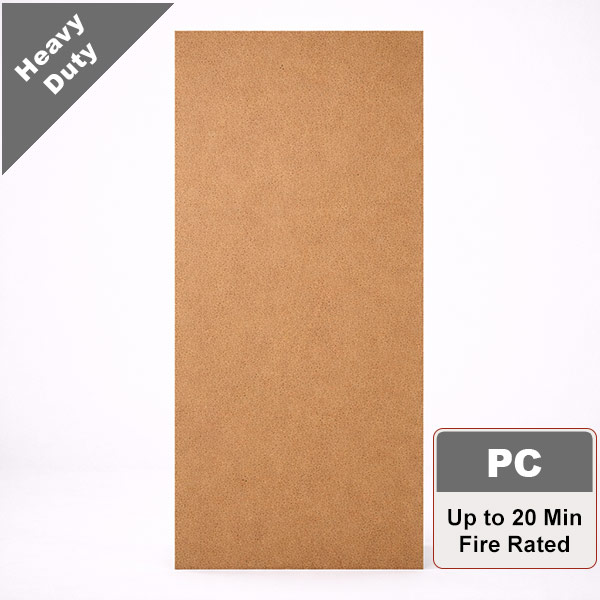

Raw Hardboard Commercial Wood Door with Particleboard Core, Paint Grade
Raw hardboard commercial wood doors are designed for medium to high use architectural openings where a smooth paintable surface is required. These solid core wood doors offer high durability, exceptional performance and strong paint adhesion in most commercial interior door applications.
- Interior Use
- Add Lites and Louvers
- Single or Double Door (Pairs)
- In Stock & Custom Options
Product ID: HBD-APC2
Free delivery to most businesses and jobsites throughout the US.
Most orders ship within 3-5 business days. Get a quote now.
Let's Get Started
- Quick Quotes & Fast Lead Times
- Volume Discounts & Contractor Pricing
- One on One Expert Support from Spec to Delivery
Product Details
Raw Hardboard particle board core commercial wood doors are engineered interior doors designed for durability, stability, and cost efficiency. They are manufactured by compressing wood particles with resin into a dense core, then bonded with hardwood stiles and rails and finished with wood veneer or high-pressure laminate. This construction provides excellent sound control, consistent performance, and resistance to warping.
These commercial wood doors are commonly used in office buildings, schools, healthcare facilities, hotels, multifamily housing, and retail spaces. Ideal for high-traffic interior applications, they support a wide range of commercial hardware, including locks, closers, and access control systems. Particle board core doors are also available with 20 minute fire-rated construction, making them suitable for code-compliant commercial environments.
General Description
- Architectural 5-ply particleboard core commercial wood door
- Bonded core construction
- Non-rated or 20-minute fire-rated options available
- Grade A hardwood veneer or plastic laminate faces
- FSC and NAUF options available
- Designed for heavy use in schools, hospitals, public buildings, military facilities, and corridor applications
- Interior use only
- Meets ANSI/WDMA I.S. 1A, W.I. Section 12, and AWI Grade Custom (Edition II, 2014)
Product Features & Specifications
- Maximum size: 4’0″ x 10’0″
- Minimum size: 1’6″ x 5’0″ (contact manufacturer for additional options)
- Thickness: 1-3/8″ or 1-3/4″
Core Construction
- Particleboard core (LD-2) meeting ANSI A208.1 and CS236-66
- LD-1 core used for plastic laminate faces
- Optional cores: structural composite lumber (SCL) and stave core
Stiles and Rails
- Stiles: 1-1/4″ laminated hardwood bonded to core
- Rails: 1-1/4″ minimum softwood
- Stile and rail dimensions may vary based on machining requirements
Door Faces
- Premium grade 2-ply hardwood veneers
- High density fiberboard (HDF)
- High pressure decorative laminate (HPDL)
Adhesives
- Type-I interior adhesive
- Lites and Louvers
- Openings limited to 40% of door area or 50% of door height
- Minimum 5″ from door edge
Machining & Preparation
- Factory machining available for specified hardware
- Metal louvers and lite kits available
- Wood lite stops available to match door faces
Finishing Options
- Available unfinished or factory finished
- Water-borne stain base UV finish available
- Meets WDMA/AWI TR-6 finishing standards
- EPA and CARB compliant
Warranty
- Lifetime warranty (per manufacturer terms)
LEED Contributions
- MR 5.1 & 5.2 – Regional materials (up to 2 points)
- MR7 – Certified wood (1 point)
- Chain of Custody certificate available
Lock Prep Options

161 Lock Prep / Deadbolt Prep
Bored – 2-3/4″ Backset (ANSI / SDI A115.2)

86 Edge Prep
Mortise Lock Edge Prep w/ Blank Face (ANSI / SDI A115.1)

RPD – Rim Panic Reinforced
(Blank Edge & Blank Face) Designed for use with panic bar exit devices.

Custom Lock Prep
(Template Required)
Configurations

Single Door

Double Door Active/Inactive
Secondary Door Can Open When Flush Bolts Are Disengaged

Double Exit Door
Both Doors Active w/ SVR Panic

Double Door Push/Pull
Both Doors Active
(Cannot Be Fire Rated)

Communicating Door
For Adjoining Hotel Rooms

Double Egress Door
For Emergency Exit In Either Direction
Double Acting Door
Swings Both Directions (Cannot Be Fire Rated)
Core Construction

Bonded core construction
Particleboard core (LD-2) meeting ANSI A208.1 and CS236-66
LD-1 core used for plastic laminate faces
Designed for heavy use in schools, hospitals, public buildings, military facilities, and corridor applications
Elevations

Flush

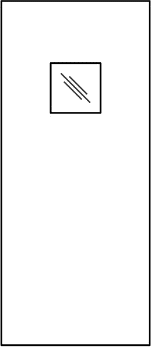

Vision Lite

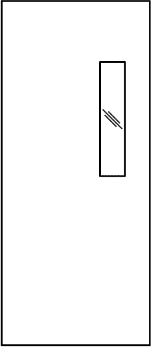

Narrow Lite

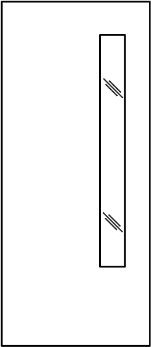

Long Narrow Lite

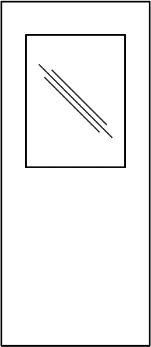

Half Glass

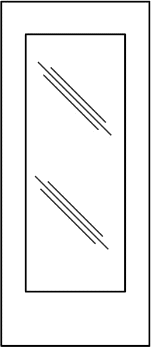

Full Glass

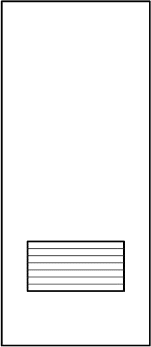

Louver

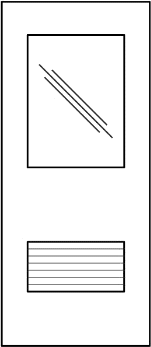

Louver & Glass
