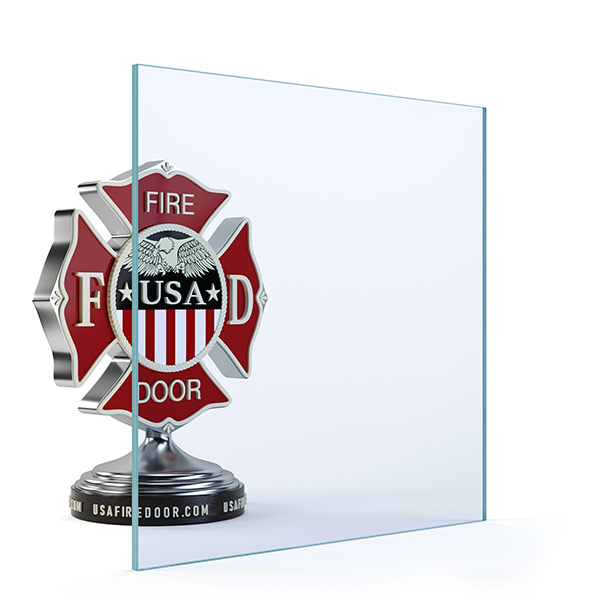

PYRAN® Platinum L 3/8″ Fire-Rated Laminated Safety Glass Ceramic (PPL)

PYRAN® Platinum L is a 3/8″ thick fire-protective laminated glass ceramic safety glazing designed for commercial door vision lites, borrowed lites, sidelites, and transoms, providing impact safety compliance and fire protection ratings up to 180 minutes.

  • 3/8″ (9.5mm) laminated glass ceramic construction
  • Fire ratings from 20 to 180 minutes
  • Impact safety rated (CPSC Category I & II)
  • Approximately 80% visible light transmission
  • Designed for vision lites, sidelites, transoms, and borrowed lites

Product ID: PPL

Free delivery to most businesses and jobsites throughout the US.

Most orders ship within 3-5 business days. Get a quote now.

Let's Get Started

  • Quick Quotes & Fast Lead Times
  • Volume Discounts & Contractor Pricing
  • One on One Expert Support from Spec to Delivery

Product Details

PYRAN® Platinum L fire-protective glazing is a laminated glass ceramic material consisting of two layers of glass ceramic with an interlayer designed to improve durability and impact resistance. This fire-protective glass is designed to resist the passage of flames, smoke, and toxic gases but does not provide a barrier to radiant heat transfer. Suitable for commercial hollow metal doors and commercial wood doors, this glazing is commonly specified for vision lites, borrowed lites, sidelites, and transoms in commercial, institutional, healthcare, and industrial buildings requiring code-compliant fire door glazing.

Specifications

  • Material: Laminated fire-protective glass ceramic (two ceramic glass layers with interlayer)
  • Thickness: 3/8″ (9.5mm)
  • Weight: Approximately 4.31 psf
  • Visible light transmission: Approximately 80%
  • STC rating: 36
  • Minimum size: 4″ × 6″
  • Maximum sheet size: 43″ × 77″
  • Fire ratings: 20, 45, 60, 90, and 180 minutes (size dependent)
  • Fire classification: Fire-protective glazing
  • Listings: UL 9, UL 10B, UL 10C, NFPA 80, ASTM E2074, ASTM E2010, CAN/ULC S104, CAN/ULC S106
  • Impact safety: CPSC 16CFR 1201 Category I and II
  • ANSI standard: ANSI Z97.1 impact safety compliant
  • Applications: Vision lites, borrowed lites, sidelites, and transoms
  • Finish options: Clear and frosted
  • Glazing requirements: Standard glazing tape or intumescent glazing tape
  • Marking: Permanent fire label marking required
  • Warranty: Limited manufacturer warranty
  • Fire-protective glass resists flames, smoke, and toxic gases
  • This product is not a barrier against radiant heat

Downloads
schott-PYRAN_Platinumdatasheet-singleL.pdf

Lock Prep Options

161 Lock Prep / Deadbolt Prep
161 Lock Prep / Deadbolt Prep
Bored – 2-3/4″ Backset (ANSI / SDI A115.2)

86 Edge Prep
86 Edge Prep
Mortise Lock Edge Prep w/ Blank Face (ANSI / SDI A115.1)

RPD - Rim Panic Reinforced
RPD – Rim Panic Reinforced
(Blank Edge & Blank Face) Designed for use with panic bar exit devices.

Custom Lock Prep
Custom Lock Prep
(Template Required)

Configurations

Single Door
Single Door

Double Door Active/Inactive
Double Door Active/Inactive
Secondary Door Can Open When Flush Bolts Are Disengaged

Double Exit Door
Double Exit Door
Both Doors Active w/ SVR Panic

Double Door Push/Pull
Double Door Push/Pull
Both Doors Active
(Cannot Be Fire Rated)

Communicating Door
Communicating Door
For Adjoining Hotel Rooms

Double Egress Door
Double Egress Door
For Emergency Exit In Either Direction

Double Acting Door
Double Acting Door
Swings Both Directions (Cannot Be Fire Rated)

Core Construction

Polystyrene

Polystyrene – Provides improved thermal performance and rigidity

Thermal Performance

U-Factor Range (Calculated) ASTM C518 0.13 to 0.16
U-Factor Range (Operable) ASTM C1363 0.35 to 0.41
R-Value Range (Calculated) ASTM C518 6.40 to 7.61
R-Value Range (Operable) ASTM C1363 2.40 to 2.80



Disclaimer: Thermal performance data is based on industry standard construction methods and testing. Actual thermal performance may vary based on installation methods. The addition of weatherstrip, vision lites, glass, louvers and hardware products will affect thermal performance. Even though polystyrene offers greater thermal performance compared to other core options this product is not Energy Star qualified.
