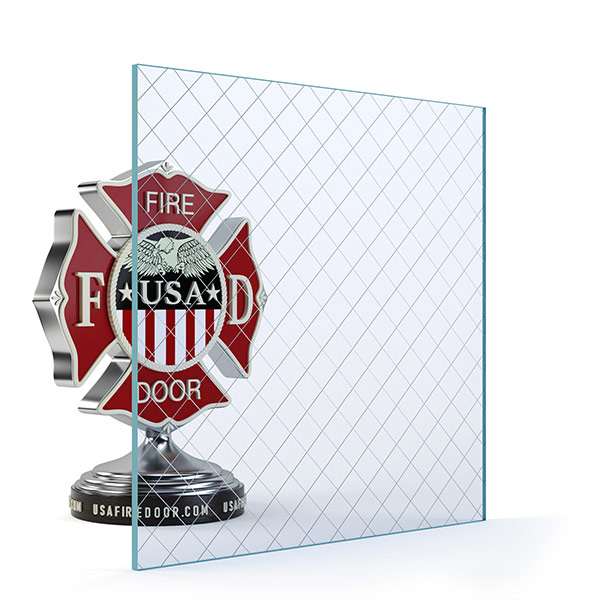

PROTECT3® Fire-Rated Safety Wired Glass
PROTECT3® is a 1/4″ thick fire-protective wired safety glass designed for commercial door vision lites, borrowed lites, sidelites, and transoms, providing impact safety compliance and fire protection ratings up to 90 minutes with enhanced security performance.
- 1/4″ (6.8mm) wired glass with safety film
- Fire ratings up to 90 minutes with hose stream
- Impact safety rated (CPSC Category I & II)
- Embedded wire mesh with enhanced security performance
- Designed for vision lites, sidelites, transoms, and borrowed lites
Product ID: PROTECT3
FREE delivery to most businesses and jobsites on qualifying orders.
Most orders ship within 3-5 business days. Get a quote now.
HOW TO ORDER
- Get a written quote from a USA Fire Door Solutions Specialist
- Approve & we ship your order
- Click the button below or call us to get started. You can upload plans, photos or files if you have them.
Product Details
PROTECT3® fire-protective glazing is a wired safety glass designed for commercial hollow metal doors and commercial wood doors requiring fire-rated glazing, impact safety, and enhanced security performance. The glass incorporates embedded wire mesh and a factory-applied safety film to improve strength and durability while maintaining clarity. This fire-protective glass resists flames, smoke, and toxic gases but does not provide a barrier to radiant heat transfer. Suitable for vision lites, borrowed lites, sidelites, and transoms, this glazing is commonly specified for commercial, institutional, and high-traffic environments requiring both fire protection and added security.
Specifications
- Material: Wired glass with factory-applied fire-rated safety film
- Thickness: 1/4″ (6.8mm)
- Weight: Approximately 3.6 psf
- Visible light transmission: Approximately 86%
- STC rating: 28
- Minimum size: 2″ × 2″
- Maximum sheet size: 48″ × 96″
- Fire ratings: 20, 45, 60, and 90 minutes depending on size and application
- Fire classification: Fire-protective glazing
- Listings: UL 9, UL 10B, UL 10C, ASTM E2010, ASTM E2074, CAN/ULC S104, CAN/ULC S106
- Impact safety: CPSC 16CFR 1201 Category I & II
- ANSI standard: ANSI Z97.1 impact safety compliant
- Applications: Vision lites, borrowed lites, sidelites, and transoms
- Pattern options: Diamond or square wire pattern
- Glazing requirements: Compatible glazing compounds or fire-rated glazing tape
- Marking: Permanent UL classification label required
- Warranty: Limited manufacturer warranty
- Fire-protective glass resists flames, smoke, and toxic gases
- This product is not a barrier against radiant heat
Security Performance
Passes 400 ft-lb impact testing
Passes air blast testing – minimum Level 3 @ 4.0 PSI
Provides visual deterrent through reinforced wired construction
Lock Prep Options
161 Lock Prep / Deadbolt Prep
Bored – 2-3/4″ Backset (ANSI / SDI A115.2)
86 Edge Prep
Mortise Lock Edge Prep w/ Blank Face (ANSI / SDI A115.1)
RPD – Rim Panic Reinforced
(Blank Edge & Blank Face) Designed for use with panic bar exit devices.
Custom Lock Prep
(Template Required)
Configurations
Single Door
Double Door Active/Inactive
Secondary Door Can Open When Flush Bolts Are Disengaged
Double Exit Door
Both Doors Active w/ SVR Panic
Double Door Push/Pull
Both Doors Active
(Cannot Be Fire Rated)
Communicating Door
For Adjoining Hotel Rooms
Double Egress Door
For Emergency Exit In Either Direction
Double Acting Door
Swings Both Directions (Cannot Be Fire Rated)
Core Construction
Polystyrene – Provides improved thermal performance and rigidity
Thermal Performance
| U-Factor Range (Calculated) ASTM C518 | 0.13 to 0.16 |
| U-Factor Range (Operable) ASTM C1363 | 0.35 to 0.41 |
| R-Value Range (Calculated) ASTM C518 | 6.40 to 7.61 |
| R-Value Range (Operable) ASTM C1363 | 2.40 to 2.80 |
Disclaimer: Thermal performance data is based on industry standard construction methods and testing. Actual thermal performance may vary based on installation methods. The addition of weatherstrip, vision lites, glass, louvers and hardware products will affect thermal performance. Even though polystyrene offers greater thermal performance compared to other core options this product is not Energy Star qualified.
Standard Sizes
7’0” / 84” Door Heights (1-3/4” Thick)
| Nominal Size | Inches | Actual Size (Net) |
| 2’0” x 6’8” | 24” x 80” | 23-3/4” x 79-1/8” |
| 2’4” x 6’8” | 28” x 80” | 27-3/4” x 79-1/8” |
| 2’6” x 6’8” | 30” x 80” | 29-3/4” x 79-1/8” |
| 2’8” x 80” | 32” x 80” | 31-3/4” x 79-1/8” |
| 2’10” x 6’8” | 34” x 80” | 33-3/4” x 79-1/8” |
| 3’0” x 6’8” | 36” x 80” | 35-3/4” x 79-1/8” |
| 3’4” x 6’8” | 40” x 80” | 39-3/4” x 79-1/8” |
| 3’6” x 6’8” | 42” x 80” | 41-3/4” x 79-1/8” |
| 4’0” x 6’8” | 48” x 80” | 47-3/4” x 79-1/8” |
7’0” / 84” Door Heights (1-3/4” Thick)
| Nominal Size | Inches | Actual Size (Net) |
| 2’0” x 7’0″ | 24” x 84” | 23-3/4” x 83-1/8” |
| 2’4” x 7’0″ | 28” x 84” | 27-3/4” x 83-1/8” |
| 2’6” x 7’0″ | 30” x 84” | 29-3/4” x 83-1/8” |
| 2’8” x 7’0″ | 32” x 84” | 31-3/4” x 83-1/8” |
| 2’10” x 7’0″ | 34” x 84” | 33-3/4” x 83-1/8” |
| 3’0” x 7’0″ | 36” x 84” | 35-3/4” x 83-1/8” |
| 3’4” x 7’0″ | 40” x 84” | 39-3/4” x 83-1/8” |
| 3’6” x 7’0″ | 42” x 84” | 41-3/4” x 83-1/8” |
| 4’0” x 7’0″ | 48” x 84” | 47-3/4” x 83-1/8” |
8’0” / 96” Door Heights (1-3/4” Thick)
| Nominal Size | Inches | Actual Size (Net) |
| 2’0” x 8’0″ | 24” x 96” | 23-3/4” x 95-1/8” |
| 2’4” x 8’0″ | 28” x 96” | 27-3/4” x 95-1/8” |
| 2’6” x 8’0″ | 30” x 96” | 29-3/4” x 95-1/8” |
| 2’8” x 8’0″ | 32” x 96” | 31-3/4” x 95-1/8” |
| 2’10” x 8’0″ | 34” x 96” | 33-3/4” x 95-1/8” |
| 3’0” x 8’0″ | 36” x 96” | 35-3/4” x 95-1/8” |
| 3’4” x 8’0″ | 40” x 96” | 39-3/4” x 95-1/8” |
| 3’6” x 8’0″ | 42” x 96” | 41-3/4” x 95-1/8” |
| 4’0” x 8’0″ | 48” x 96” | 47-3/4” x 95-1/8” |
