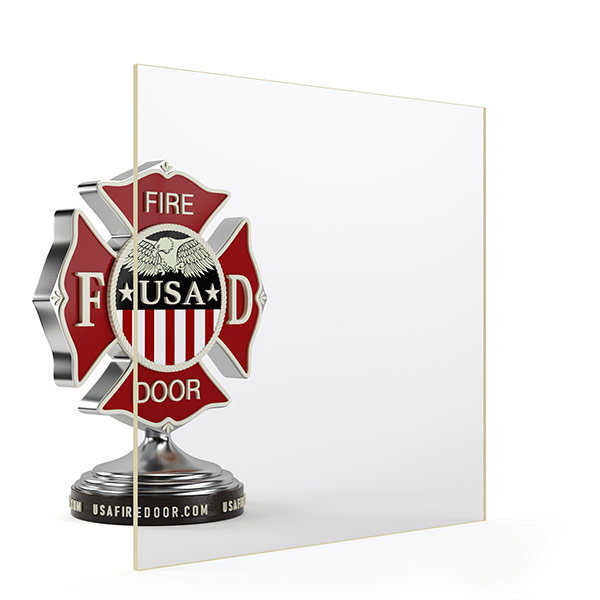

PROTECT-X® Lead X-Ray Radiation Shielding Glass
PROTECT-X® is a lead-lined radiation shielding glass designed for commercial door vision lites, borrowed lites, sidelites, and transoms, providing high optical clarity with lead equivalency protection for medical and security applications.
- High optical grade lead glass construction
- Over 55% lead content for radiation attenuation
- Available in multiple lead equivalency levels
- Light transmission greater than 89%
- Designed for X-ray radiation shielding applications
Product ID: PROTECT-X
FREE delivery to most businesses and jobsites on qualifying orders.
Most orders ship within 3-5 business days. Get a quote now.
HOW TO ORDER
- Get a written quote from a USA Fire Door Solutions Specialist
- Approve & we ship your order
- Click the button below or call us to get started. You can upload plans, photos or files if you have them.
Product Details
PROTECT-X® radiation shielding glazing is a high-density lead glass designed for commercial hollow metal doors and commercial wood doors requiring protection from X-ray radiation. The glass incorporates a high percentage of lead oxide to provide effective radiation attenuation while maintaining clear visibility for observation areas. This product is not fire-rated and is intended for use in healthcare, laboratory, airport security, and industrial inspection environments where radiation shielding performance is required. Suitable for vision lites, borrowed lites, sidelites, and transoms, this glazing is commonly specified for imaging rooms, control windows, and secure viewing panels.
Specifications
- Material: Lead oxide radiation shielding glass
- Construction: Monolithic lead glass or laminated safety configurations available
- Lead content: Greater than 55% heavy metal oxide
Thickness options:
- Approximately 3/8″ (10mm)
- Approximately 5/8″ (15mm)
- Custom thicknesses available
Weight:
- 10mm thickness: Approximately 9.2 psf
- 15mm thickness: Approximately 13.8 psf
- Light transmission: Greater than 89%
- Minimum size: Project specific
- Maximum size: Up to 48″ × 96″
Order size:
- Cut to specified dimensions
Lead equivalency:
- Greater than 1/16″ (2.3mm) typical for standard X-ray applications
- Greater than 1/8″ (3.2mm) for higher shielding requirements
- Measurement standard: Lead equivalency measured at 150kV
- Applications: Vision lites, borrowed lites, sidelites, and transoms
- Compatible frames: Lead-lined vision lite frames and radiation shielding assemblies
- Optional configurations: Laminated safety glass or insulated glass units available
- Handling: Requires protection from moisture, acids, and abrasion
- Installation: Must overlap adjacent shielding materials for continuous protection
- Maintenance: Clean with non-abrasive materials and mild detergents
- Warranty: Limited manufacturer warranty
Lock Prep Options
161 Lock Prep / Deadbolt Prep
Bored – 2-3/4″ Backset (ANSI / SDI A115.2)
86 Edge Prep
Mortise Lock Edge Prep w/ Blank Face (ANSI / SDI A115.1)
RPD – Rim Panic Reinforced
(Blank Edge & Blank Face) Designed for use with panic bar exit devices.
Custom Lock Prep
(Template Required)
Configurations
Single Door
Double Door Active/Inactive
Secondary Door Can Open When Flush Bolts Are Disengaged
Double Exit Door
Both Doors Active w/ SVR Panic
Double Door Push/Pull
Both Doors Active
(Cannot Be Fire Rated)
Communicating Door
For Adjoining Hotel Rooms
Double Egress Door
For Emergency Exit In Either Direction
Double Acting Door
Swings Both Directions (Cannot Be Fire Rated)
Core Construction
Polystyrene – Provides improved thermal performance and rigidity
Thermal Performance
| U-Factor Range (Calculated) ASTM C518 | 0.13 to 0.16 |
| U-Factor Range (Operable) ASTM C1363 | 0.35 to 0.41 |
| R-Value Range (Calculated) ASTM C518 | 6.40 to 7.61 |
| R-Value Range (Operable) ASTM C1363 | 2.40 to 2.80 |
Disclaimer: Thermal performance data is based on industry standard construction methods and testing. Actual thermal performance may vary based on installation methods. The addition of weatherstrip, vision lites, glass, louvers and hardware products will affect thermal performance. Even though polystyrene offers greater thermal performance compared to other core options this product is not Energy Star qualified.
Standard Sizes
7’0” / 84” Door Heights (1-3/4” Thick)
| Nominal Size | Inches | Actual Size (Net) |
| 2’0” x 6’8” | 24” x 80” | 23-3/4” x 79-1/8” |
| 2’4” x 6’8” | 28” x 80” | 27-3/4” x 79-1/8” |
| 2’6” x 6’8” | 30” x 80” | 29-3/4” x 79-1/8” |
| 2’8” x 80” | 32” x 80” | 31-3/4” x 79-1/8” |
| 2’10” x 6’8” | 34” x 80” | 33-3/4” x 79-1/8” |
| 3’0” x 6’8” | 36” x 80” | 35-3/4” x 79-1/8” |
| 3’4” x 6’8” | 40” x 80” | 39-3/4” x 79-1/8” |
| 3’6” x 6’8” | 42” x 80” | 41-3/4” x 79-1/8” |
| 4’0” x 6’8” | 48” x 80” | 47-3/4” x 79-1/8” |
7’0” / 84” Door Heights (1-3/4” Thick)
| Nominal Size | Inches | Actual Size (Net) |
| 2’0” x 7’0″ | 24” x 84” | 23-3/4” x 83-1/8” |
| 2’4” x 7’0″ | 28” x 84” | 27-3/4” x 83-1/8” |
| 2’6” x 7’0″ | 30” x 84” | 29-3/4” x 83-1/8” |
| 2’8” x 7’0″ | 32” x 84” | 31-3/4” x 83-1/8” |
| 2’10” x 7’0″ | 34” x 84” | 33-3/4” x 83-1/8” |
| 3’0” x 7’0″ | 36” x 84” | 35-3/4” x 83-1/8” |
| 3’4” x 7’0″ | 40” x 84” | 39-3/4” x 83-1/8” |
| 3’6” x 7’0″ | 42” x 84” | 41-3/4” x 83-1/8” |
| 4’0” x 7’0″ | 48” x 84” | 47-3/4” x 83-1/8” |
8’0” / 96” Door Heights (1-3/4” Thick)
| Nominal Size | Inches | Actual Size (Net) |
| 2’0” x 8’0″ | 24” x 96” | 23-3/4” x 95-1/8” |
| 2’4” x 8’0″ | 28” x 96” | 27-3/4” x 95-1/8” |
| 2’6” x 8’0″ | 30” x 96” | 29-3/4” x 95-1/8” |
| 2’8” x 8’0″ | 32” x 96” | 31-3/4” x 95-1/8” |
| 2’10” x 8’0″ | 34” x 96” | 33-3/4” x 95-1/8” |
| 3’0” x 8’0″ | 36” x 96” | 35-3/4” x 95-1/8” |
| 3’4” x 8’0″ | 40” x 96” | 39-3/4” x 95-1/8” |
| 3’6” x 8’0″ | 42” x 96” | 41-3/4” x 95-1/8” |
| 4’0” x 8’0″ | 48” x 96” | 47-3/4” x 95-1/8” |
