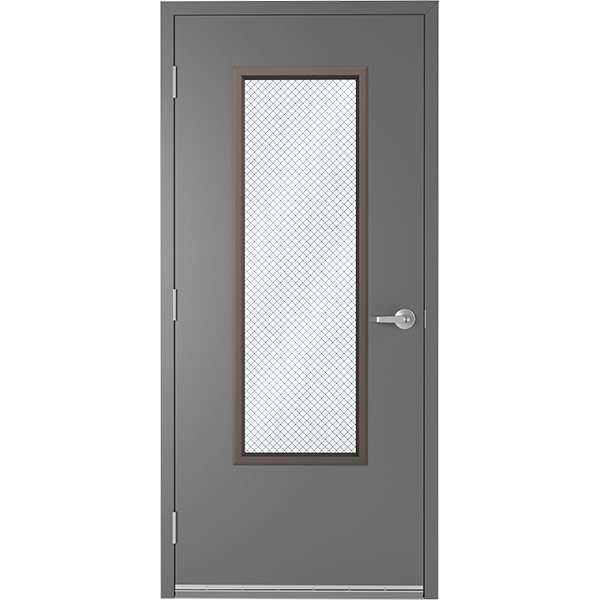

18ga. Galvannealed Steel Commercial Door with Wide Stiles, Full Vision Lite and Safety Wire Glass
18ga. Galvannealed Steel Commercial Doors with a polystyrene core and a wide stile full-lite vision lite kit with fire rated diamond wire safety glass are designed for high use commercial and industrial settings. These heavy-duty commercial doors offer exceptional performance and durability in both interior and exterior applications.
- Corrosion Resistant Galvannealed Steel
- Wide Stile Full-Lite Vision Lite Window
- ¼” Fire Rated Diamond Wire Safety Glass
- Polystyrene Insulated Core
- Optional Fire Rating up to 45 Minutes
- Standard and Custom Hardware Preps Available
- Custom Sizes Available
Product ID: S10-FLWS-WS
FREE delivery to most businesses and jobsites on qualifying orders.
HOW TO ORDER
- Get a written quote from a USA Fire Door Solutions Specialist
- Approve & we ship your order
- Click the button below or call us to get started. You can upload plans, photos or files if you have them.
Product Details
Hollow metal doors are constructed from high-quality galvannealed steel sheets formed, welded, and reinforced using interlocking seams to create a strong, durable and uncompromising door panel. These hollow metal doors come with a wide stile full-lite vision lite kit with fire rated diamond wire safety glass and for further durability the vision lite kit’s frame is hem strengthened for a rigid, smooth and safe finish. These hollow metal doors are finished with a factory applied, baked-on rust inhibiting primer providing a smooth finish and paintable surface suitable for commercial and industrial environments. They can be used in virtually any application for a dependable, reliable, and long-lasting solution whether it be interior or exterior and support standard or custom hinge and lock preparations. For more information, please speak to an Account Manager today!
Door Specifications
- Model shown with full body polystyrene core creating a flatter, stronger and smoother door
- Wide stile full-lite vision lite kit with fire rated diamond wire safety glass
- Optional welded channel reinforcements for added rigidity
- For both interior and exterior applications
- Model shown with 161 “C” cylindrical lock prep. ANSI / SDI A115.2
- SDI Level 2: heavy duty 18-gauge corrosion resistant A40 galvannealed steel
- Meets or exceeds ANSI 250.4 and ANSI 250.8 standard
- Insulated cores to choose from – honeycomb, polystyrene, or polyurethane insulated cores (prices may vary)
- Factory applied 2-part epoxy primer for a superior finish, color gray. After cleaning, this door is ready to be finished with premium latex or oil-based paint
- Fire rated up to 45 minutes and certified by WHI / ITS (Warnock Hersey / Intertek Testing Service) with positive pressure and “S” smoke ratings included.
- Additional features include a non-handed design, 12-gauge heavy duty closer reinforcement, 7-gauge heavy duty hinge reinforcement, 16-gauge heavy duty flush top cap, 16-gauge inverted bottom cap
- Custom sizes and preparations available – please speak with an Account Manager today!
Vision Lite and Glass Specifications
- Vision lite kit framing is made from 20 gauge cold rolled hem-strengthened steel
- Standard finishes include mineral bronze and gray primer powder coats
- Fire rated: up to 45 minutes
- Fire rating standards: UL9, UL10B, UL10C, UBC7-4, UBC 7-2, NFPA80, NFPA257, ASTM E2074, E2010-01, CAN/ULC-S106, S104
- Includes safety-rated ¼” annealed single glazing with one-sided safety film and embedded 3/4″ x 3/4″ wire mesh diamond pattern
- Optional pattern: baroque (square wire)
- Impact safety rating: CPSC 16CFR 1201 (CAT l & ll)
- Sound transmission class (STC): 31
- Light transmission: 84%
Lock Prep Options
161 Lock Prep / Deadbolt Prep
Bored – 2-3/4″ Backset (ANSI / SDI A115.2)
86 Edge Prep
Mortise Lock Edge Prep w/ Blank Face (ANSI / SDI A115.1)
RPD – Rim Panic Reinforced
(Blank Edge & Blank Face) Designed for use with panic bar exit devices.
Custom Lock Prep
(Template Required)
Configurations
Single Door
Double Door Active/Inactive
Secondary Door Can Open When Flush Bolts Are Disengaged
Double Exit Door
Both Doors Active w/ SVR Panic
Double Door Push/Pull
Both Doors Active
(Cannot Be Fire Rated)
Communicating Door
For Adjoining Hotel Rooms
Double Egress Door
For Emergency Exit In Either Direction
Double Acting Door
Swings Both Directions (Cannot Be Fire Rated)
Core Construction
Polystyrene – Provides improved thermal performance and rigidity
Thermal Performance
| U-Factor Range (Calculated) ASTM C518 | 0.13 to 0.16 |
| U-Factor Range (Operable) ASTM C1363 | 0.35 to 0.41 |
| R-Value Range (Calculated) ASTM C518 | 6.40 to 7.61 |
| R-Value Range (Operable) ASTM C1363 | 2.40 to 2.80 |
Disclaimer: Thermal performance data is based on industry standard construction methods and testing. Actual thermal performance may vary based on installation methods. The addition of weatherstrip, vision lites, glass, louvers and hardware products will affect thermal performance. Even though polystyrene offers greater thermal performance compared to other core options this product is not Energy Star qualified.
Standard Sizes
7’0” / 84” Door Heights (1-3/4” Thick)
| Nominal Size | Inches | Actual Size (Net) |
| 2’0” x 6’8” | 24” x 80” | 23-3/4” x 79-1/8” |
| 2’4” x 6’8” | 28” x 80” | 27-3/4” x 79-1/8” |
| 2’6” x 6’8” | 30” x 80” | 29-3/4” x 79-1/8” |
| 2’8” x 80” | 32” x 80” | 31-3/4” x 79-1/8” |
| 2’10” x 6’8” | 34” x 80” | 33-3/4” x 79-1/8” |
| 3’0” x 6’8” | 36” x 80” | 35-3/4” x 79-1/8” |
| 3’4” x 6’8” | 40” x 80” | 39-3/4” x 79-1/8” |
| 3’6” x 6’8” | 42” x 80” | 41-3/4” x 79-1/8” |
| 4’0” x 6’8” | 48” x 80” | 47-3/4” x 79-1/8” |
7’0” / 84” Door Heights (1-3/4” Thick)
| Nominal Size | Inches | Actual Size (Net) |
| 2’0” x 7’0″ | 24” x 84” | 23-3/4” x 83-1/8” |
| 2’4” x 7’0″ | 28” x 84” | 27-3/4” x 83-1/8” |
| 2’6” x 7’0″ | 30” x 84” | 29-3/4” x 83-1/8” |
| 2’8” x 7’0″ | 32” x 84” | 31-3/4” x 83-1/8” |
| 2’10” x 7’0″ | 34” x 84” | 33-3/4” x 83-1/8” |
| 3’0” x 7’0″ | 36” x 84” | 35-3/4” x 83-1/8” |
| 3’4” x 7’0″ | 40” x 84” | 39-3/4” x 83-1/8” |
| 3’6” x 7’0″ | 42” x 84” | 41-3/4” x 83-1/8” |
| 4’0” x 7’0″ | 48” x 84” | 47-3/4” x 83-1/8” |
8’0” / 96” Door Heights (1-3/4” Thick)
| Nominal Size | Inches | Actual Size (Net) |
| 2’0” x 8’0″ | 24” x 96” | 23-3/4” x 95-1/8” |
| 2’4” x 8’0″ | 28” x 96” | 27-3/4” x 95-1/8” |
| 2’6” x 8’0″ | 30” x 96” | 29-3/4” x 95-1/8” |
| 2’8” x 8’0″ | 32” x 96” | 31-3/4” x 95-1/8” |
| 2’10” x 8’0″ | 34” x 96” | 33-3/4” x 95-1/8” |
| 3’0” x 8’0″ | 36” x 96” | 35-3/4” x 95-1/8” |
| 3’4” x 8’0″ | 40” x 96” | 39-3/4” x 95-1/8” |
| 3’6” x 8’0″ | 42” x 96” | 41-3/4” x 95-1/8” |
| 4’0” x 8’0″ | 48” x 96” | 47-3/4” x 95-1/8” |
