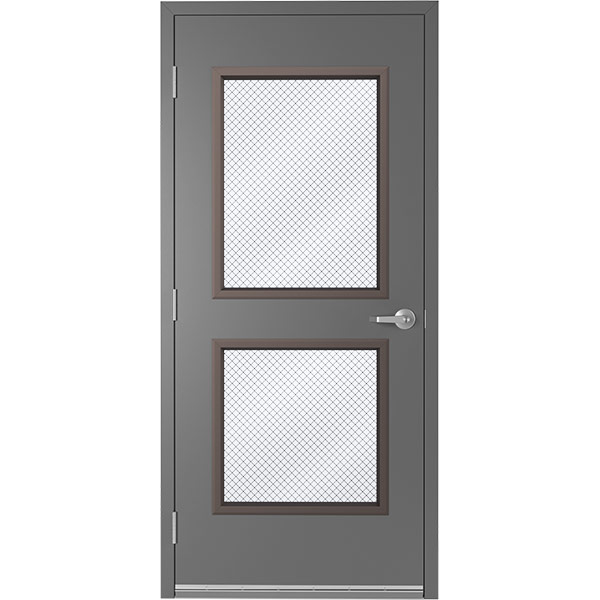

18ga. Galvannealed Steel 2-Lite Commercial Door with Vision Lites and Safety Wire Glass
18ga. Galvannealed Steel Commercial Doors with a polystyrene core and 2-lite or top and bottom vision lite kits with fire rated diamond wire safety glass are designed for high use commercial and industrial settings. These heavy-duty commercial doors offer exceptional performance and durability in both interior and exterior applications.
- Interior or Exterior Use
- Fire Rated from 0 – 45 Min.
- Security Wire Glass
- In Stock & Custom Options
Product ID: S10-2L-WS
Free delivery to most businesses and jobsites throughout the US.
Let's Get Started
- Quick Quotes & Fast Lead Times
- Volume Discounts & Contractor Pricing
- One on One Expert Support from Spec to Delivery
Product Details
Hollow metal doors are constructed from high-quality galvannealed steel sheets formed, welded, and reinforced using interlocking seams to create a strong, durable and uncompromising door panel. These hollow metal doors come with top and bottom vision lite kits with non-fire rated diamond wire safety glass for further durability the vision lite kit’s frames are hem strengthened for a rigid, smooth and safe finish. These hollow metal doors are finished with a factory applied, baked-on rust inhibiting primer providing a smooth finish and paintable surface suitable for commercial and industrial environments. They can be used in virtually any application for a dependable, reliable, and long-lasting solution whether it be interior or exterior and support standard or custom hinge and lock preparations. For more information, please speak to an Account Manager today!
Door Specifications
- Model shown with full body polystyrene core creating a flatter, stronger and smoother door
- 2-lite or top and bottom vision lite kits with non-fire rated diamond wire safety glass
- Optional welded channel reinforcements for added rigidity
- For both interior and exterior applications
- Model shown with 161 “C” cylindrical lock prep. ANSI / SDI A115.2
- SDI Level 2: heavy duty 18-gauge corrosion resistant A40 galvannealed steel
- Meets or exceeds ANSI 250.4 and ANSI 250.8 standard
- Insulated cores to choose from – honeycomb, polystyrene, or polyurethane insulated cores (prices may vary)
- Factory applied 2-part epoxy primer for a superior finish, color gray. After cleaning, this door is ready to be finished with premium latex or oil-based paint
- Additional features include a non-handed design, 12-gauge heavy duty closer reinforcement, 7-gauge heavy duty hinge reinforcement, 16-gauge heavy duty flush top cap, 16-gauge inverted bottom cap
- Custom sizes and preparations available – please speak with an Account Manager today!
Vision Lite and Glass Specifications
- Vision lite kit framing is made from 20 gauge cold rolled hem-strengthened steel
- Standard finishes include mineral bronze and gray primer powder coats
- Non-fire rated
- Includes safety-rated ¼” annealed single glazing with one-sided safety film and embedded 3/4″ x 3/4″ wire mesh diamond pattern
- Optional pattern: baroque (square wire)
- Impact safety rating: CPSC 16CFR 1201 (CAT l & ll)
- Sound transmission class (STC): 31
- Light transmission: 84%
Lock Prep Options
161 Lock Prep / Deadbolt Prep
Bored – 2-3/4″ Backset (ANSI / SDI A115.2)
86 Edge Prep
Mortise Lock Edge Prep w/ Blank Face (ANSI / SDI A115.1)
RPD – Rim Panic Reinforced
(Blank Edge & Blank Face) Designed for use with panic bar exit devices.
Custom Lock Prep
(Template Required)
Configurations
Single Door
Double Door Active/Inactive
Secondary Door Can Open When Flush Bolts Are Disengaged
Double Exit Door
Both Doors Active w/ SVR Panic
Double Door Push/Pull
Both Doors Active
(Cannot Be Fire Rated)
Communicating Door
For Adjoining Hotel Rooms
Double Egress Door
For Emergency Exit In Either Direction
Double Acting Door
Swings Both Directions (Cannot Be Fire Rated)
Core Construction
Polystyrene – Provides improved thermal performance and rigidity
Thermal Performance
| U-Factor Range (Calculated) ASTM C518 | 0.13 to 0.16 |
| U-Factor Range (Operable) ASTM C1363 | 0.35 to 0.41 |
| R-Value Range (Calculated) ASTM C518 | 6.40 to 7.61 |
| R-Value Range (Operable) ASTM C1363 | 2.40 to 2.80 |
Disclaimer: Thermal performance data is based on industry standard construction methods and testing. Actual thermal performance may vary based on installation methods. The addition of weatherstrip, vision lites, glass, louvers and hardware products will affect thermal performance. Even though polystyrene offers greater thermal performance compared to other core options this product is not Energy Star qualified.
