Up to 90 Min. Fire Rated Metal Doors

90 min. fire rated metal doors are used where the building design calls for a 90-minute fire-protection-rated door assembly and the selected door construction is listed for that application. Typical locations can include corridors, stair enclosures, shafts, mechanical rooms, tenant separations, and other rated barriers, but the exact requirement comes from the wall or barrier rating and the adopted code. The door rating should be confirmed from the project documents rather than selected solely from the room name.

A 90-minute door is commonly paired with certain rated wall or barrier conditions, but the relationship is not a simple one-size-fits-all rule. Opening protectives are assigned ratings based on the type and rating of the wall assembly and the applicable code table. Existing conditions, corridor provisions, shafts, fire barriers, smoke barriers, and local amendments can change the requirement. For ordering, use the rating shown on the door schedule or confirm it with the design professional or authority having jurisdiction.

A fire-rated opening is evaluated as an assembly, not as a door leaf by itself. The frame must be appropriate for the required rating, and hardware used on the opening must be listed or otherwise permitted for the application. Depending on the opening, that may include listed hinges, latching hardware, closers, exit devices, coordinators, gasketing, and other components. The exact requirements vary with the rating, door configuration, occupancy, and listing, so the safest approach is to coordinate the complete opening before ordering.

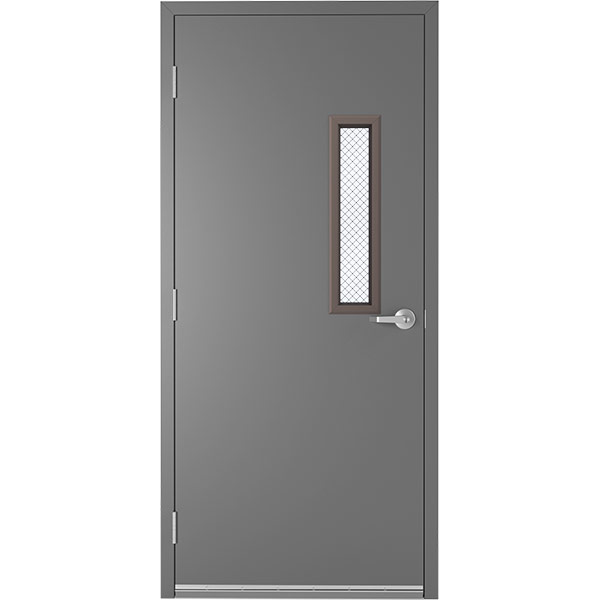

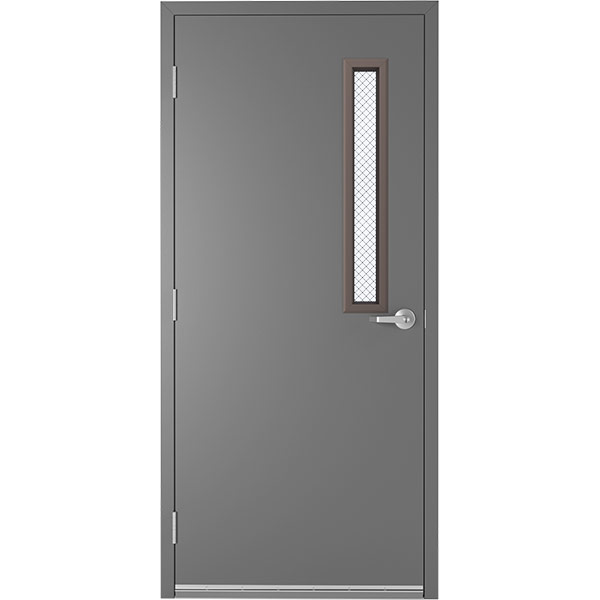

Yes, many 90 min. fire rated metal doors can include listed fire-protection or fire-resistance-rated glazing, but the allowable glass type, exposed area, lite dimensions, and location depend on the door rating and the applicable listings. A standard tempered-glass lite used in a non-rated door cannot simply be substituted into a fire-rated opening. When glass is required, specify the desired vision-lite size and rating early so the door, glazing frame, glass, and label can be supplied as a compatible configuration.

Some 90 min. fire rated metal doors can be supplied with listed fusible-link louvers, but fire-rated louver applications are restricted. The allowable rating, louver size, location, door type, and interaction with glass or exit hardware are controlled by the product listings and code requirements. Certain fire-door configurations do not permit louvers at all. If ventilation is required through a rated opening, identify that requirement before the door is ordered so the proposed louver can be checked against the complete assembly.

Yes, many 90 min. fire rated metal doors are available as pairs, but paired fire doors require more coordination than two single leaves placed side by side. Meeting-stile construction, astragals, coordinators, flush bolts, exit devices, latching, closers, and any required gasketing must match the listed configuration. Some hardware arrangements are not available at every rating or door size. For pairs, submit the full opening width, handing or active leaf, hardware set, and required rating with the quote request.

Sometimes, but the replacement leaf has to be compatible with the existing frame, hardware, rating, and opening configuration. Record the labels on the existing door and frame, the exact leaf dimensions, hinge and lock locations, handing, undercut, and hardware before ordering. A new labeled door does not automatically make an older opening compliant if the frame, hardware, field modifications, or installation conditions do not meet the requirements of the assembly. Replacement work should be evaluated as an opening, not just a slab.

The hardware depends on the opening function and listing, but fire-rated doors commonly use listed hinges or pivots, positive-latching locksets or exit devices, and self-closing or automatic-closing hardware where required. Pairs can add coordinators, flush bolts, or specific exit-device arrangements. Electrified hardware, continuous hinges, concealed closers, and access-control components may also be possible when the door and frame are properly prepared. Hardware should be selected before fabrication so reinforcements, machining, and labels remain coordinated.

Yes, custom sizes are available for many 90 min. fire rated metal doors, but maximum width, height, pair dimensions, lite sizes, hardware preparations, and construction vary by manufacturer and rating. A door that is available in a large non-rated size may have a smaller maximum size once a fire label is required. For oversized or unusual openings, confirm the dimensions, frame, rating, hardware, and glazing requirements before finalizing the design or ordering replacement material.

The cost of 90 min. fire rated metal doors depends on the door material, rating, size, frame, hardware, glazing or louver requirements, pair configuration, machining, finish, and freight. Higher ratings or specialty configurations can narrow the available constructions and increase cost, but the rating alone is not the whole price. For a useful quote, provide the required rating together with the opening dimensions, frame or wall information, hardware set, and any glass, louver, or access-control requirements so the complete assembly can be priced on the same basis.
